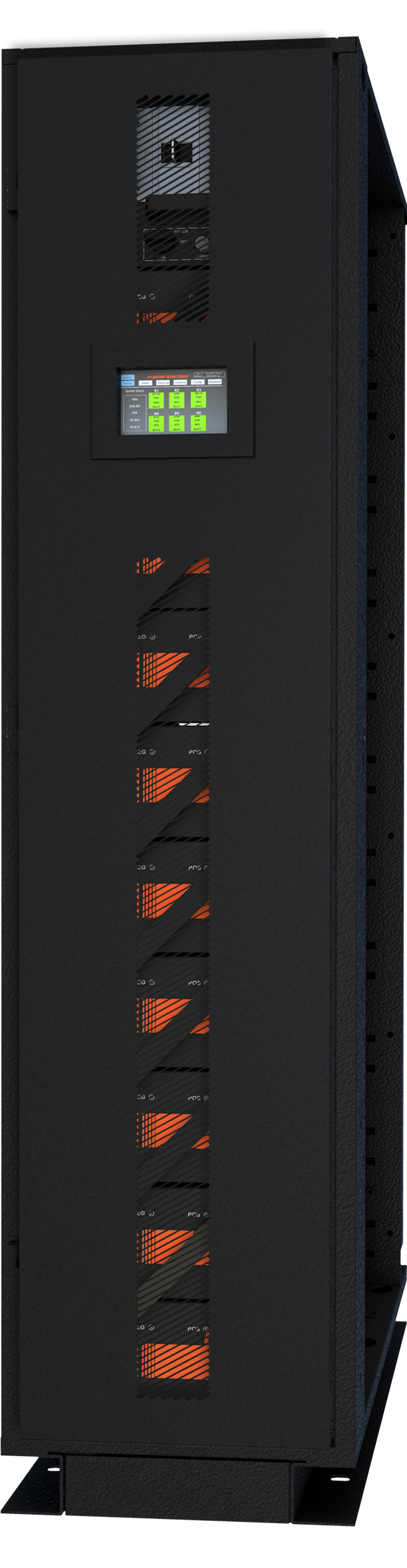

The Narada Lithium MPLhP Series High Power Series (LFP) Lithium Iron Phosphate batteries are designed for a wide range of UPS solutions providing a more open operating temperature range, while delivering exceptional warranty, safety, and life.
FEATURES AND CERTIFICATIONS
Rated Voltage
51.2V
Rated Capacity
55Ah
Weight
35Kg / 77lbs
Charge / Discharge Current (Max) Charge / End Voltage
55A / 425A
57.6V / 44.0V
Discharge Voltage
43.2V
Dimensions
Width 392mm / 15.5in
Depth 435mm / 17.2in
Height 165mm / 6.5in
Charge 0°C to 55°C
Discharge -20°C to 55°C
Storage 0°C to 40°C
Operating 15°C to 35°C
Temperature Range
<2% per month at 77° F (25° C)
Configuration
168S1P
Modules / String
10
Nominal Voltage
512V
Module
55Ah
Charge Voltage
576V
Cutoff Voltage
440V
Max Discharge
450A
Rack Width
500mm / 19.7in
Rack Depth
710mm / 28.0 in
Rack Height
2048mm / 80.7in
System Weight
540 kg / 1188 lbs.

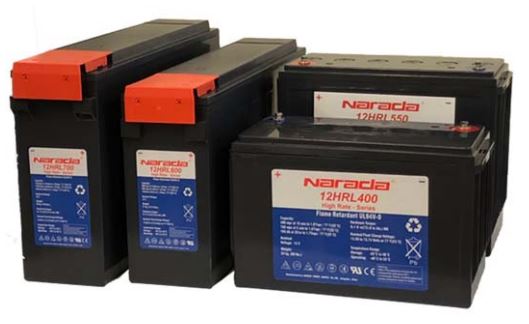

The HRL series VRLA batteries are perfectly suited to any application that requires a high-rate current over a short period. In particular, HRL batteries are ideal for UPS systems and critical power applications. Due to optimized plate technology and a patented post design the HRL series offer exceptional service life.

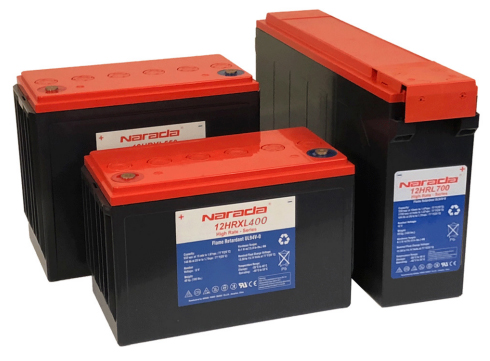

The HRXL series VRLA batteries are designed to provide extreme life in conventional temperatures as well as longer life than traditional VRLA batteries in high temperatures. Perfectly suited to any application that requires a high-rate current over a short period, this series combines proven high temperature technology and exceptional service life.
EOS – Series 2V Valve Regulated Lead Acid batteries feature the latest advancement in plate and battery technology offering exceptional service life, low self-discharge, high cycling capabilities and low float charge current characteristics. EOS – Series cell rack modules are available.
The Narada NESP Series (LFP) High Capacity Lithium Iron Phosphate batteries are designed for a wide range of UPS solutions providing a more open operating temperature range, while delivering exceptional warranty, safety, and life.

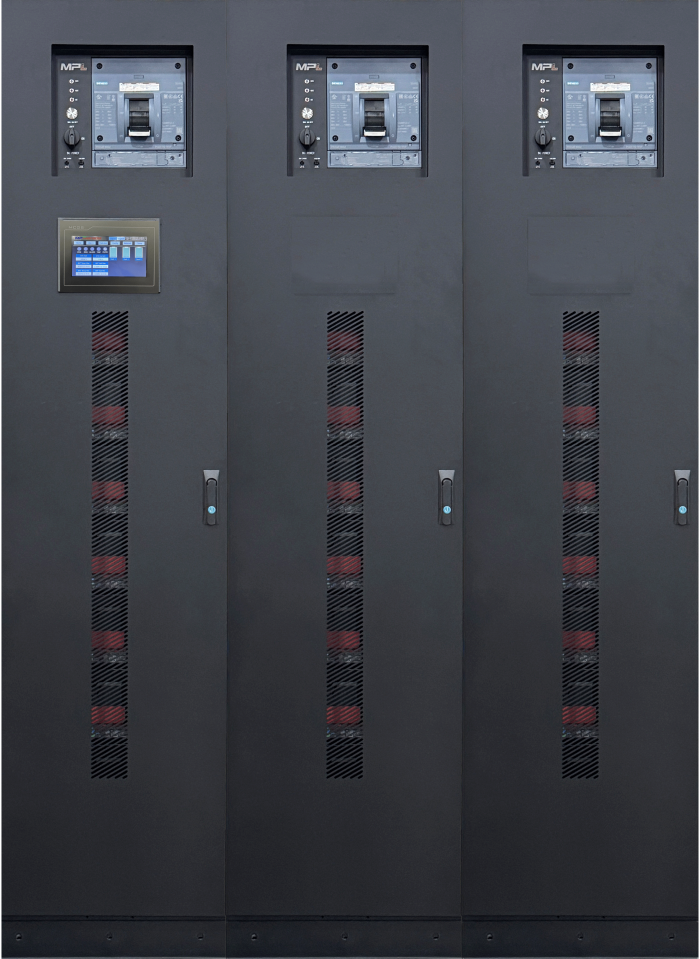

MPINarada integrated battery cabinet solution offers a turn-key battery and
battery cabinet option for UPS battery backup.
Cabinet solutions are available in both size and color to match most UPS system manufacturers.
